480Wh/kg Semi-Solid State 6S 25000mAh Battery for VTOL UAV

KKLIPO 480Wh/kg Semi-Solid State LiHv Battery 6S 25000mAh for Long Endurance VTOL Drones

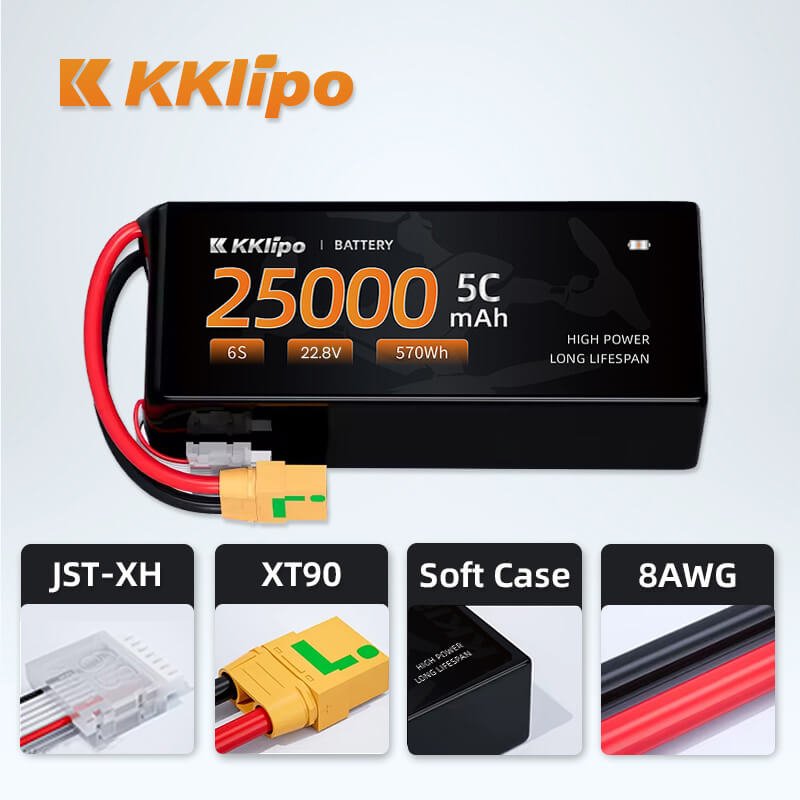

25000mAh 6S LiHv 22.8V UAV Battery with XT90S Anti-spark Plug and Solid Case Protection

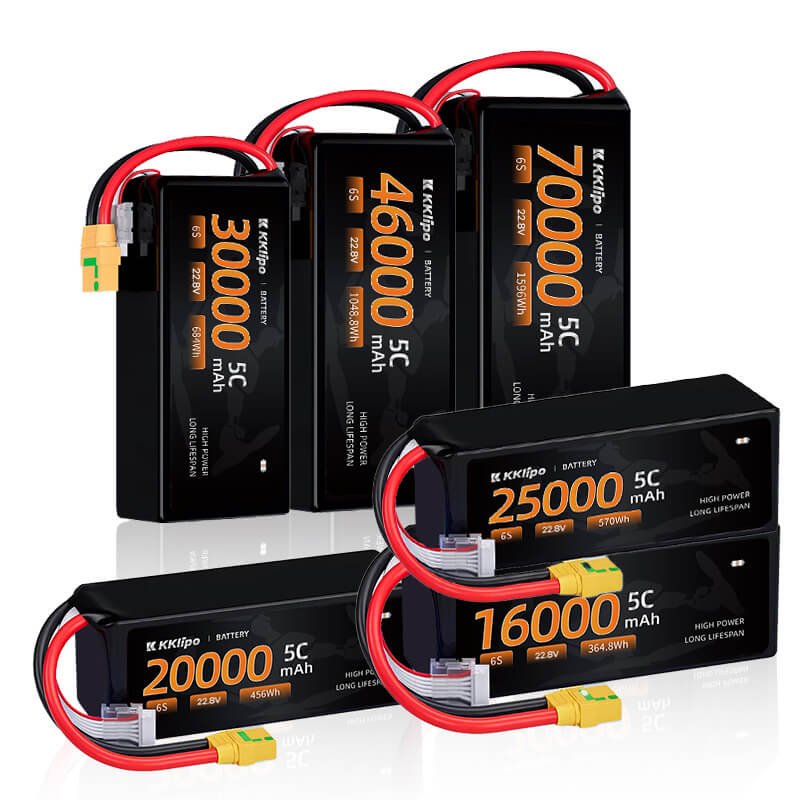

High Energy Density Drone Battery Pack 6S 25000mAh Series, Lightweight Semi-Solid State Power Solution

KKLIPO Fully Customized Drone Battery Solutions: Custom Voltage (7.4V-44.4V), Capacity (300mAh-40,000mAh+), Connector Type (XT30 to AS150), and OEM Packaging.

Multiple UAV Battery Connector Options: DeansT, XT30, EC3, XT60, EC5, QS8, XT90, XT90-S, AS150U, AS150, XT120, and QS9 for Custom Drone Battery Packs.

Specifications

Battery Type	lihv
Cells	6S
Voltage	22.8V
Capacity	25000mAh
Discharge Rate	5C
Energy	570Wh
Weight	1490g
Dimensions	36.276192mm

Download Catalog

What Can We Do For You?

KKLIPO is not only a lithium battery manufacturer, but also a solution provider offering customized battery solutions to meet customers needs for integrated battery customization.

Certified: MSDS, UN38.3, CE, UL etc.

Drone Batteries/Month Output: 500,000+

Sample Lead Time: 3-5 Days

Order Delivery: 7-10 Days

Warranty: 1 Year

Specification	Available Options
Discharge Rate (C-Rating)	5C, 10C, 15C, 20C, 50C, 80C, 100C, 150C...
Voltage Range	7.4V, 11.1V, 14.8V, 22.2V, 23.1V, 44.4V...
Battery Capacity	From 300mAh to 40,000mAh+ and beyond — custom capacities available upon request
Connector Type	XT30, XT60, XT90, XT120, T-Plug, EC5, AS150U, AS150, QS9, Custom
PVC Color	Black, White, Silver, Red, Blue... (custom colors available by Pantone code upon request)
Label & Packaging	Custom logo, sticker label, barcode, shrink wrap, boxes (OEM/ODM available)
Battery Shape/Size	elongated, cylindrical, thin-pack, etc. (customizable based on drone frame)
