KKLIPO 18S 68.4V 70,000mAh LiHv Battery (480Wh/kg)

Dimensions of KKLIPO 18S 68.4V 70,000mAh LiHv battery: 255x107x137mm, weight 10518g, with 480Wh/kg ultra-high energy density.

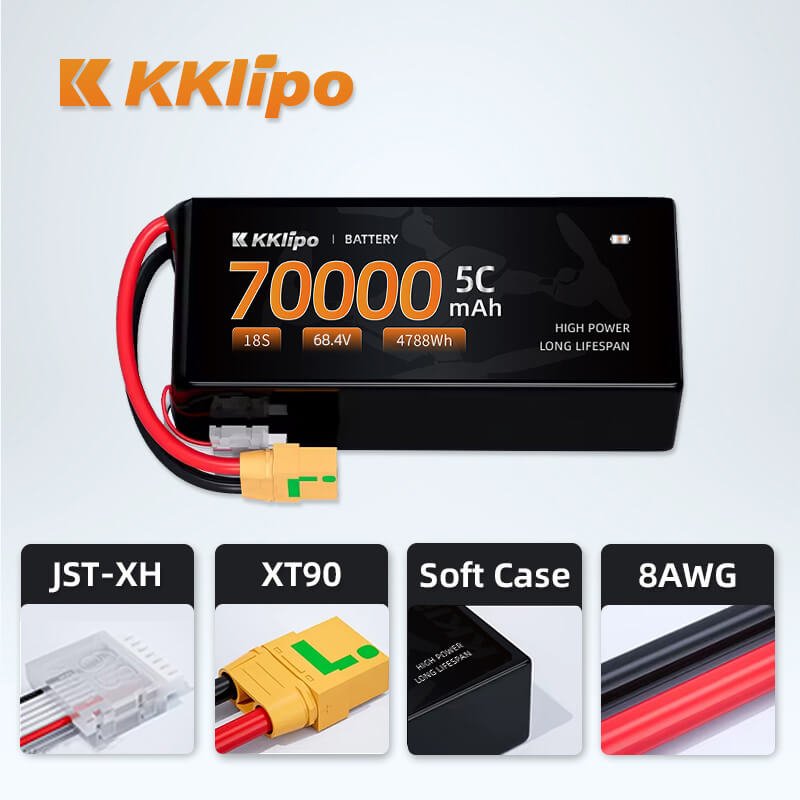

Hardware details of KKLIPO 18S 70,000mAh battery: XT90 connector, JST-XH balance plug, 8AWG high-current wire, and soft case protection.

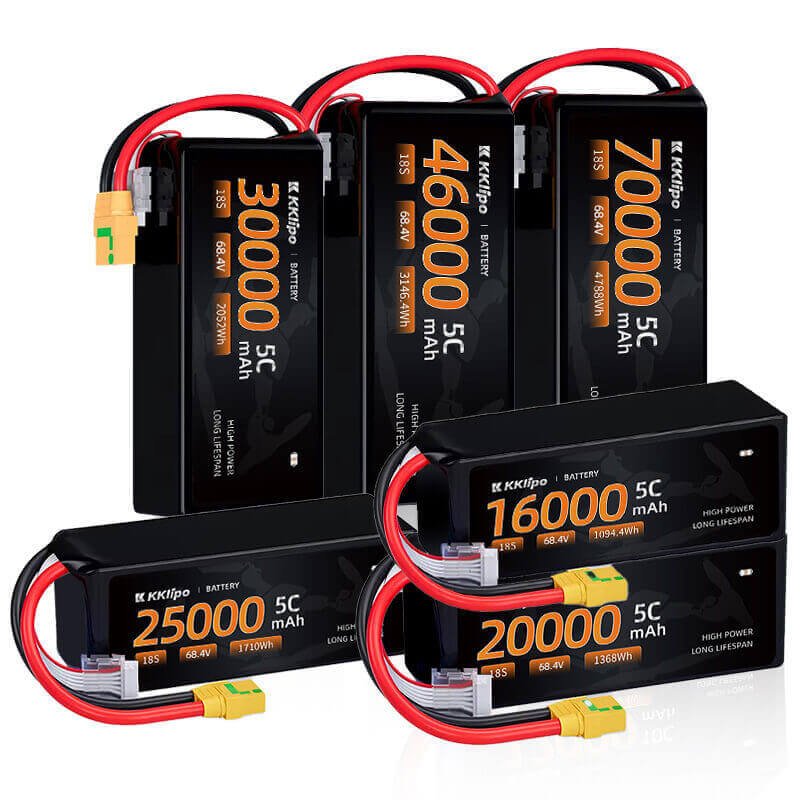

Full 18S battery series by KKLIPO, featuring 16000, 20000, 25000, 30000, 46000, and 70000 mAh capacities with 480Wh/kg technology.

Comprehensive parameter table of KKLIPO 480Wh/kg solid state batteries, showing energy (Wh), weight, and dimensions for 6S, 8S, 12S, 14S, and 18S UAV battery packs.

KKLIPO Fully Customized Drone Battery Solutions: Custom Voltage (7.4V-44.4V), Capacity (300mAh-40,000mAh+), Connector Type (XT30 to AS150), and OEM Packaging.

Multiple UAV Battery Connector Options: DeansT, XT30, EC3, XT60, EC5, QS8, XT90, XT90-S, AS150U, AS150, XT120, and QS9 for Custom Drone Battery Packs.

Specifications

Battery Type	lihv
Cells	18S
Voltage	68.4V
Capacity	70000mAh
Discharge Rate	5C
Energy	4788Wh
Weight	10518g
Dimensions	137107255mm

Download Catalog

What Can We Do For You?

KKLIPO is not only a lithium battery manufacturer, but also a solution provider offering customized battery solutions to meet customers needs for integrated battery customization.

Certified: MSDS, UN38.3, CE, UL etc.

Drone Batteries/Month Output: 500,000+

Sample Lead Time: 3-5 Days

Order Delivery: 7-10 Days

Warranty: 1 Year

Specification	Available Options
Discharge Rate (C-Rating)	5C, 10C, 15C, 20C, 50C, 80C, 100C, 150C...
Voltage Range	7.4V, 11.1V, 14.8V, 22.2V, 23.1V, 44.4V...
Battery Capacity	From 300mAh to 40,000mAh+ and beyond — custom capacities available upon request
Connector Type	XT30, XT60, XT90, XT120, T-Plug, EC5, AS150U, AS150, QS9, Custom
PVC Color	Black, White, Silver, Red, Blue... (custom colors available by Pantone code upon request)
Label & Packaging	Custom logo, sticker label, barcode, shrink wrap, boxes (OEM/ODM available)
Battery Shape/Size	elongated, cylindrical, thin-pack, etc. (customizable based on drone frame)
